S/V Constance, Alberg 30 #262 -- Navigation Lights and Wiring

See Also

• Electrical
• Don's Bulbs for cross-reference of bulbs. Example: 10W 12V for new style Need entry for AquaSignal 25 , For example

Navigation Lights

• Anchor Light: SeaDog 400010-1 LED fixed mount all around light 0.15A(?) at 12V replaced AquaSignal 20 cutsheet 5W miniature bayonet base (BA9S) on 2020-05-07.
• Deck Light: ML-2 LED Combination Deck / Steaming Light 0.36A at 12V replaced ML-2 Combination Deck / Steaming Light during May 2020.
• Sidelights: AquaSignal 25 Bicolor cutsheet 10W fe stoon spike end
• Steaming Light: ML-2 LED Combination Deck / Steaming Light 0.08A at 12V replaced ML-2 Combination Deck / Steaming Light during May 2020.
• Stern Light: Dr. LED Marine LED Festoon Bulb 0.15A at 12V replaced incandescent bulb in AquaSignal 25 Stern cutsheet 10W festoon spike end on 2020-08-21
• Windex Light: LED Windex Light 0.023A at 12V.

Mast Wire Ends (OUT OF DATE)

• Triplex Cable, White
  • Black: 12v+ to steaming light
  • Blue: 12v+ to deck light
  • White: 12v- to both steaming and deck light
• Duplex Cable, Gray
  • Black: anchor light
  • White: anchor light

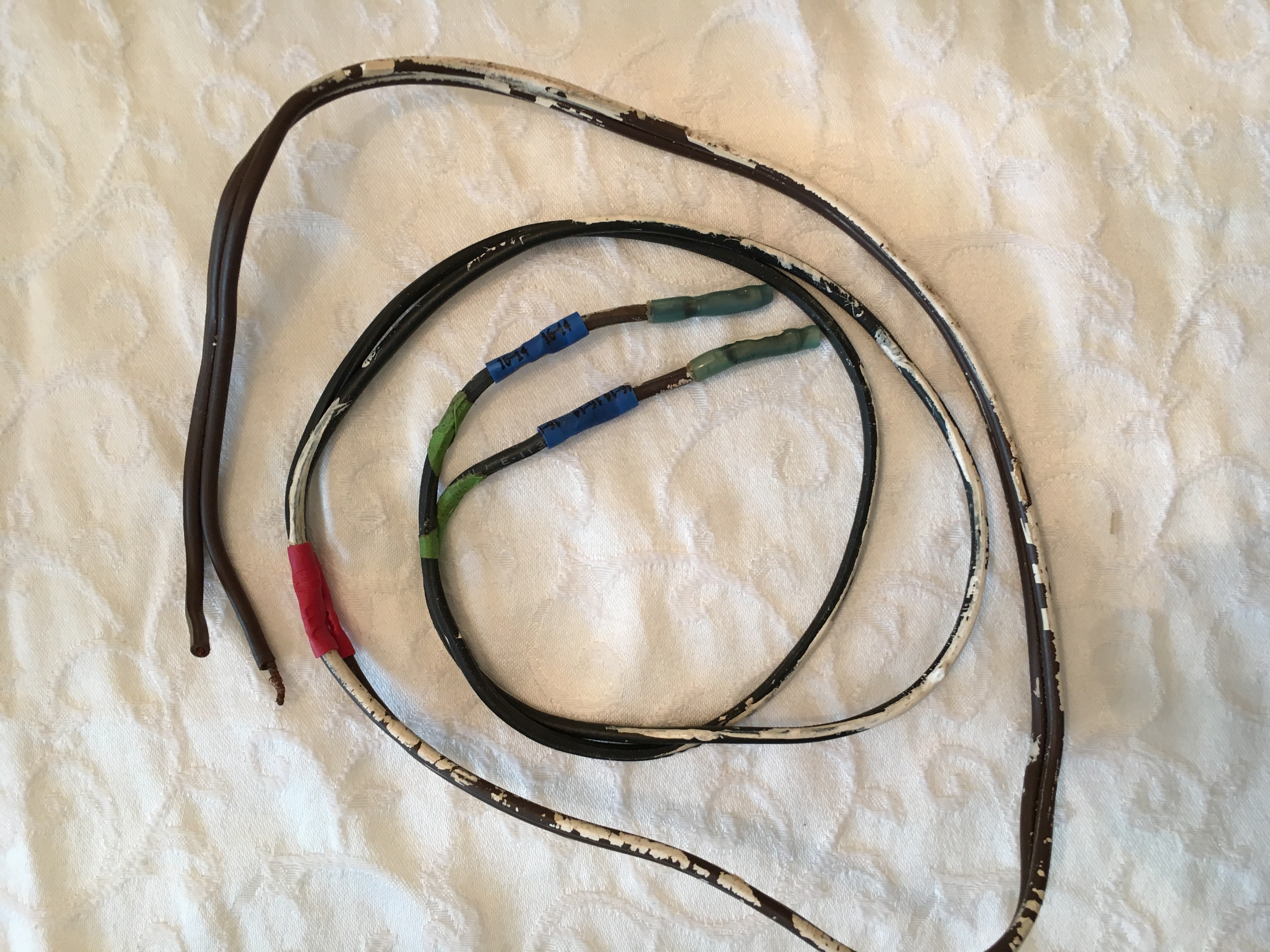

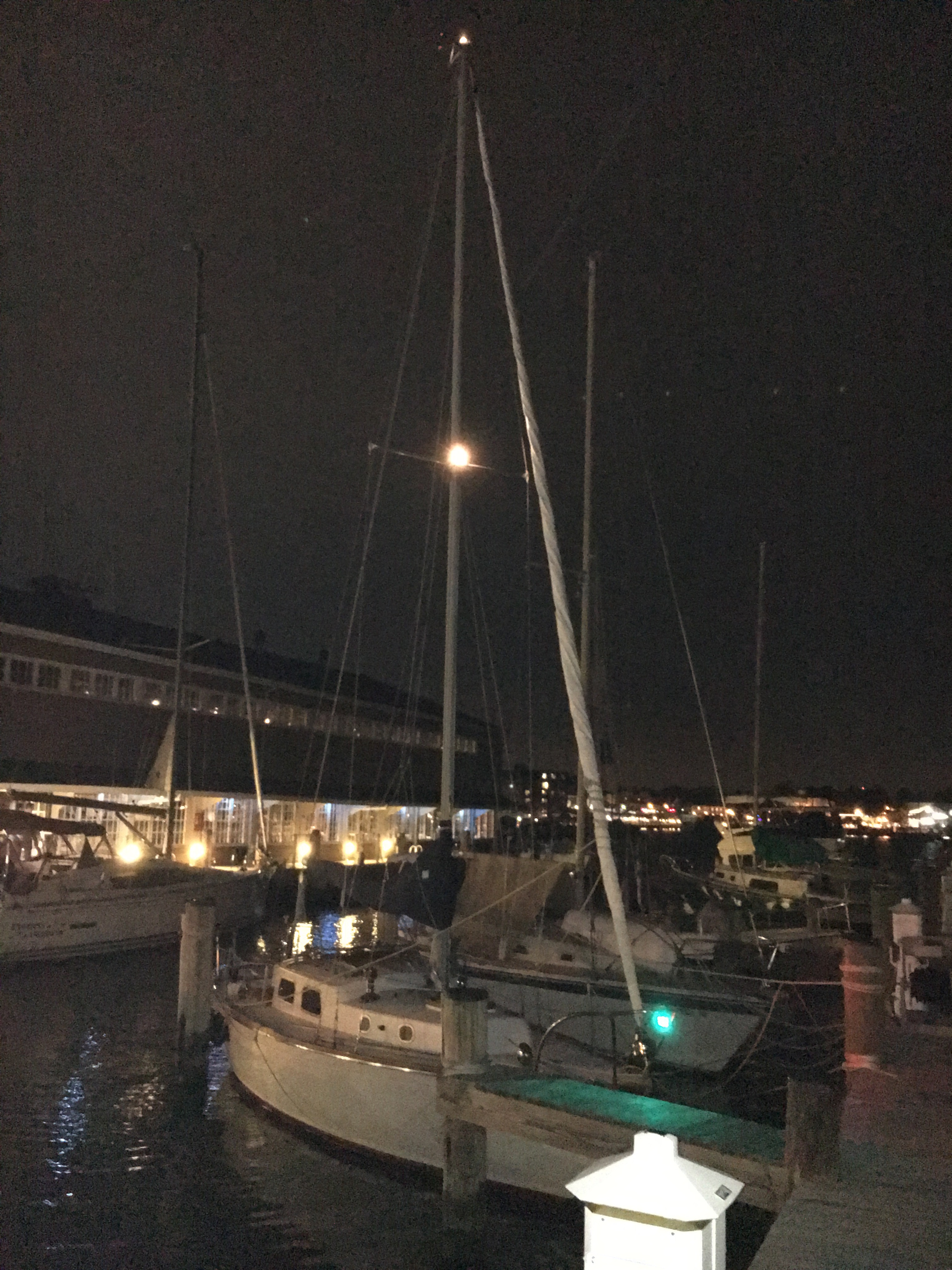

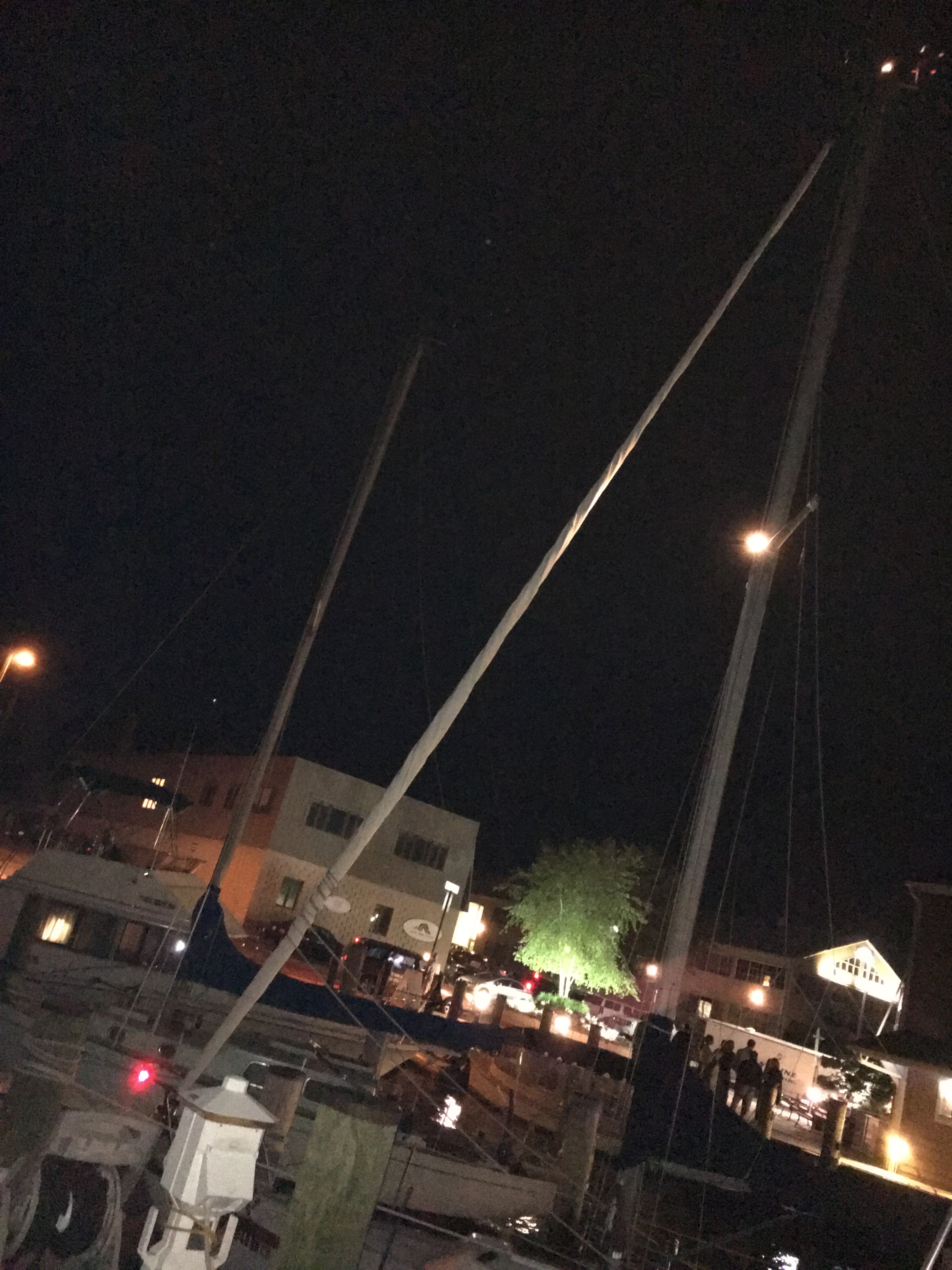

Photos from Before Replacing Lights
