Steering

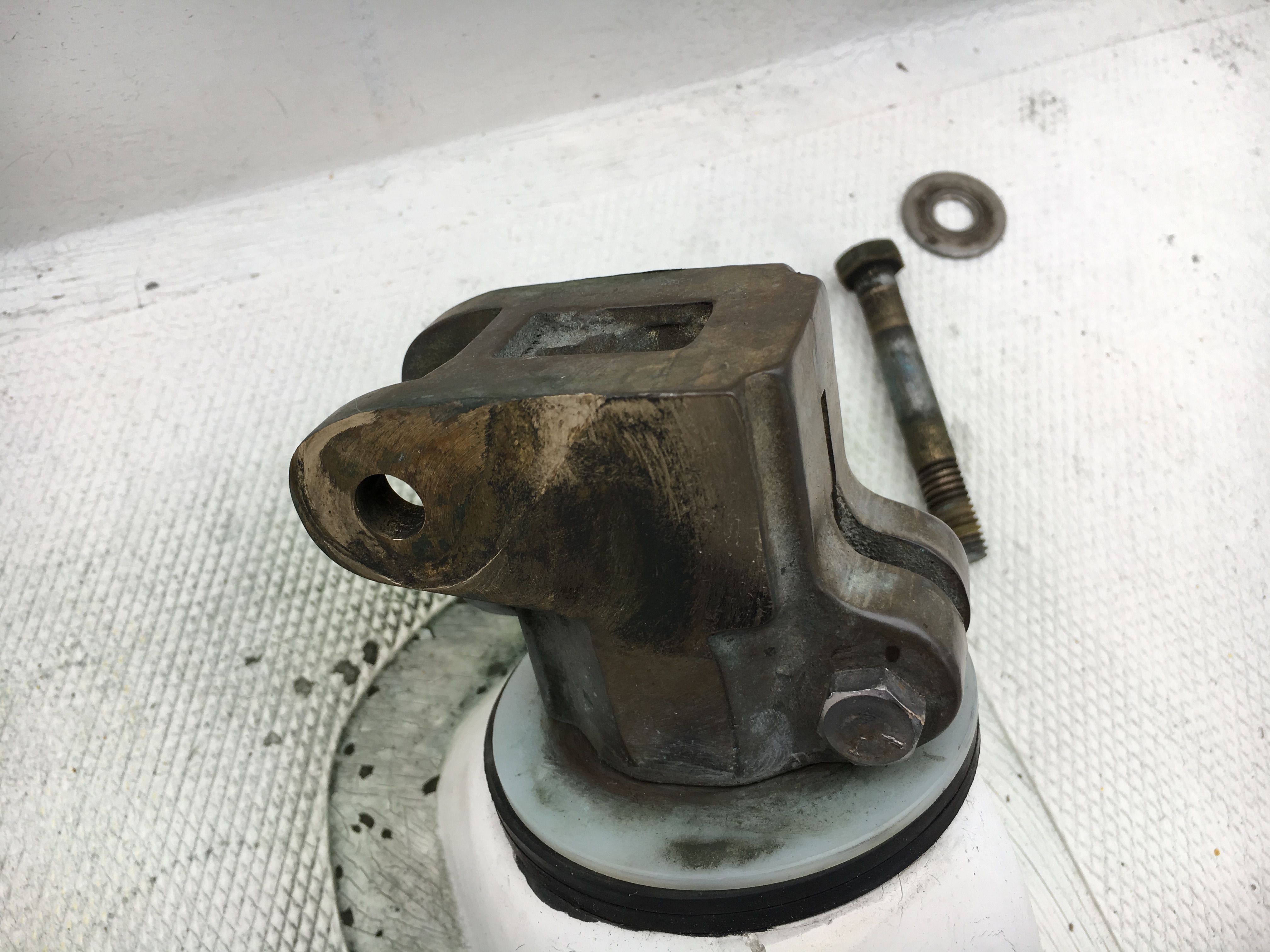

Rudder Head
- XX" ?? rudder shaft diameter
- Two 3/8" holes in flanges at rear for bolt connecting tiller head to rudder head
- 3/8" diameter bolt with 9/16" head connects tiller head to rudder head
- 1-21/32" distance from outer surface of rear flange to outer surface of other rear flange
- 1" distance from inner surface of rear flange to inner surface of other rear flange
- Bolt for holding key in keyway has 3/4" head
- 1/2" head on bolt clamping rudder head to rudder shaft
- 1-1/4" distance from outer surface of clamp to outer surface of clamp
- 3/32" distance from inner surface of clamp to inner surface of clamp
- Appears to be Rig-Rite, Inc.
PP 83-910BR
or similar
Tillerhead
- Two 3/8" holes in flanges at rear for bolt connecting tiller head to rudder head

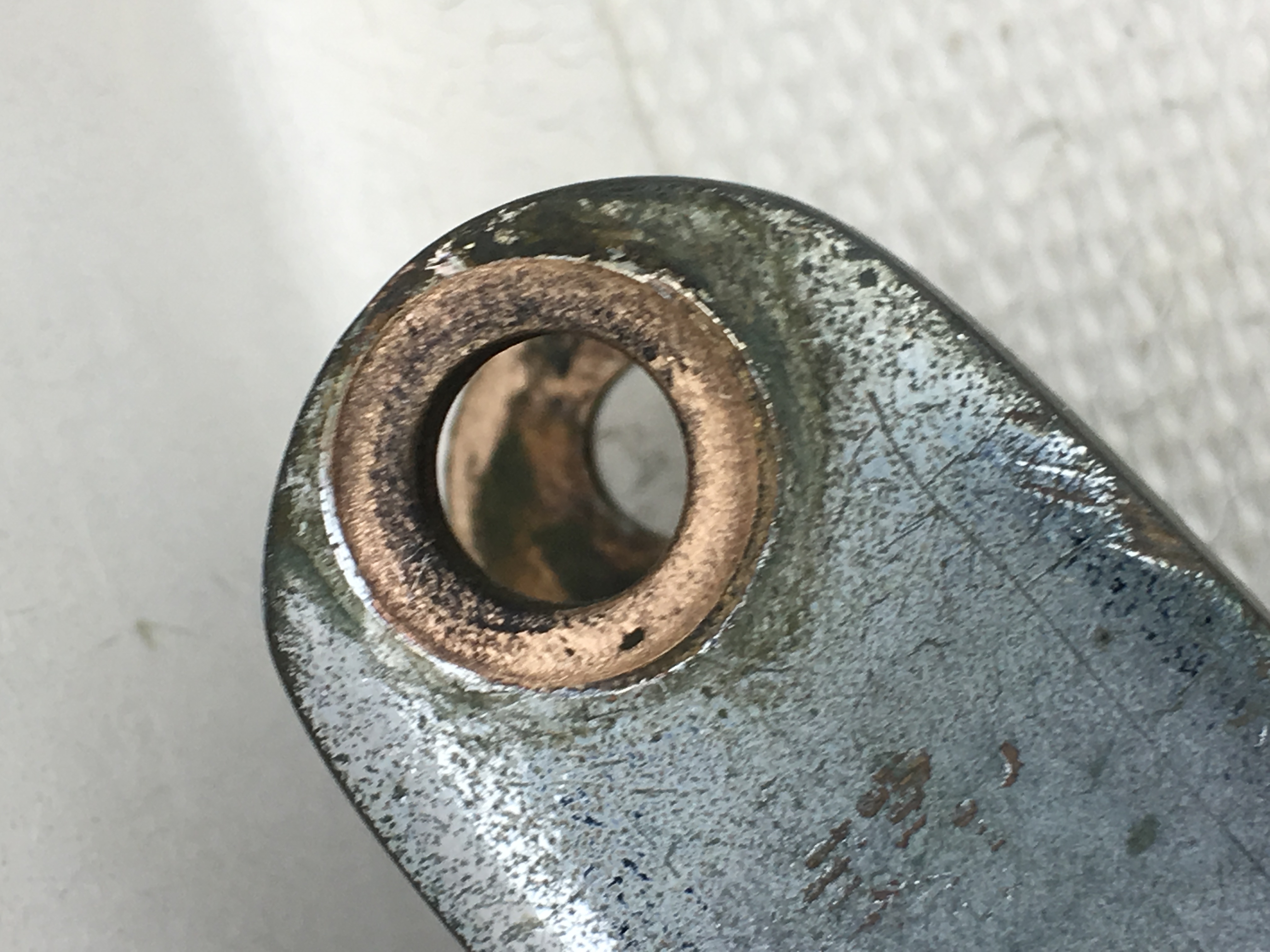

- 3/8" holes worn to about 7/16" in axis along the length of the tiller head
- 1-11/16" distance between inner edges of tiller head flanges for bolt connecting to rudder head
- 2-3/16" distance from outside to outside fo the tiller head head flanges for bolt connecting to rudder head
