Rig Measurements for Headsails (VERIFY since replacing headsail foil)
- I: 34'-5" from fully raised top shackle to top of deck. 33'-3" from fully raised top shackle to top of cabin.
- J: 10'-6" from bottommost pin securing roller furler to front edge of mast
- Max Hoist: 33'-6" from fully raised top shackle to top of shackle pulled tight over the drum of the furler
- Max Hoist to Deck: 35'-2" from fully raised top shovel shackle to deck
- Drum Height: 1'-4"
- Max Hoist to Jib Lead: 36'-5" outside of and tight against upper shroud
- Max Hoist to Front End of Jib Track: XX'-X" outside of and tight against upper shroud
- Max Hoist to Aft End of Jib Track: XX'-X" outside of and tight against upper shroud
- Genoa Track: 15'-6" from bow to foreword end of genoa track. 23'-6" from bow to aft end of genoa track
- Selden 200 S roller furler
Sail Inventories (partial)
- #262 Constance: Elliott/Pattison Sailmakers
169LP, Interrupt Thruston Sail 168LP, Tatus II 150LP, Bacons
135LP, North Sails (Lightning) 88LP, and an 78LP hank on sail from John Irving.
- #272 Rinn Duin: three headsails very close to the "official" sizes: 172LP, 134LP, 81LP
- #426 Surprise: 150LP, 120LP, and 100LP tall narrow blade
- #441 Alegria: 150LP, 135LP
- #505 Gilleleje: 135LP
- #543 Calypso: 165LP, 135LP high cut, working jib
Mainsails
| | Pandora | Interrupt | Class Limit |
| Measured | 2022-05-22 | 2019-06-26 | |
| Measurer | Lanny Helms | Mike Lehman | |
| Luff | 30'-10" | 30'-07" | 31'-00" |
| Luff Curve | 3" max. | 11" max. | no specification |
| Foot | 14'-01" | 14'-00" | 14'-03" |
| Leech | 33'-01" | | 33'-06" |
| Mid-girth | 8'-06" | | 8'-06" |
| Area | | | |
| Fabric | | | |
| Weight | | | 5.0 - 7.25oz |
- Pandora Mainsail obtained 2021-03-11 from Pat Seidel
- ~215 square feet.
- Luff (P): 30'-10", Foot (E) 14'-1", Leech: 33'-1", Midgirth 8'-6"
- Headboard: 5-1/4" vertical side, 6-1/2" horizontal side
- Battens: top 2 full, bottom 2 partial
- First Reef: 4'-6" (26'-4" from head) removes 58.6 sq ft or 27% of mailsail area
- Slides: ??
- Original foot shelf: 10.5" @ 25% back from the tack, 12.5" @ 50%, 9.75" @ 75%
- Made by Doyle
.
- Taken to Ullman Sails Annapolis
for foot rope installation ($170) on 2021-03-16.
- Received from Ullman Sails Annapolis
after installation of 3/8" foot rope, clew slug, reshaped foot shelf, and racing numbers ($240) on 2021-04-02.
- Measured and signed: 2022-05-22 by Lanny Helms #562, witnessed by Bob Leigh.
- Interrupt Mainsail obtained 2018-07-30 acquired from Bruce Greer
- 210 square feet.
- Luff (P): 30'-7" without luff rope, Foot (E): 14' of which 13'-4" of sail with 8" cut back. Leech: ??, Midgirth: ??
- Headboard: 5-1/2" vertical side, 4-1/2" horizontal side, aluminum plates
- Battens: four partial battens
- First reef (25%, 158 sq. ft.): four feet above tack, reefing ring on starboard side of sail only
- Second reef (46%, 113 sq. ft.): eight feet above tack, reefing ring on port side of sail only
- Panels are joined by a single row of three step zigzag stitching
- Total of fifteen slides, includes one in the headboard and one fairly tight below the headboard. About 24" between most of the slides. Bottom two are about 14" apart.
- Head, clew, and each of the clew reef cringle are reinforced with six additional layers of cloth.
- Tack and each of the tack reef cringle are reinforced with four additional layers of cloth.
- Draft is considerably farther forward compared to the original sail.
- Made by Thurston Sails

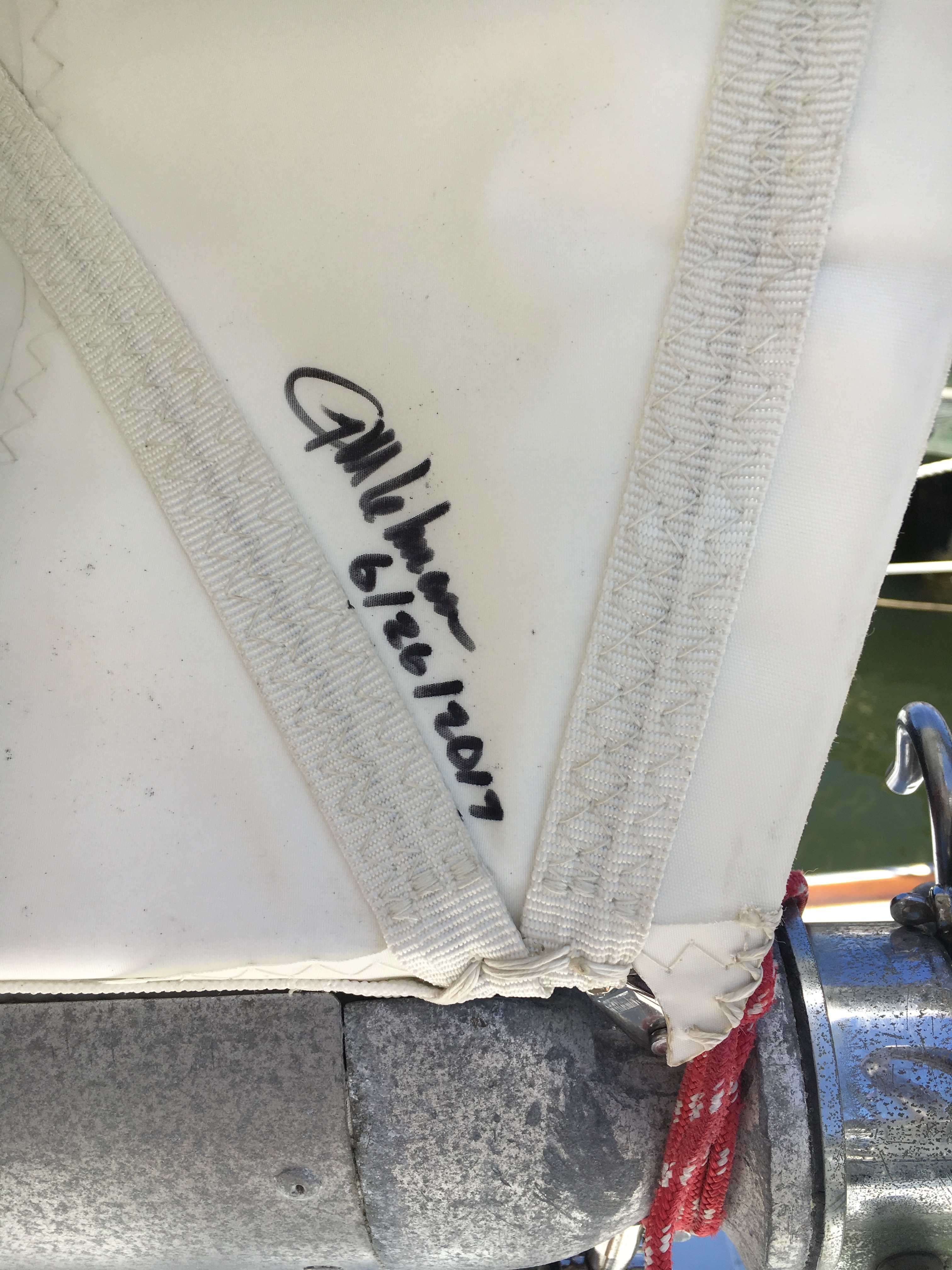

- Measured and signed: 2019-06-26 by Mike Lehman #505, witnessed by John Maliszewski. Photo below.
- Main based upon Class Rule and Sail Plan:
- Size: 220.6 square feet.
- Luff (P): 31 feet, Foot (E): 14.25 feet, Leech: 33.5 feet, Midgirth: 8.5 feet
- Headboard: maximum of 5-1/4" at right angles to the luff
- Battens: required to have four battens of any length
- Roach: smooth continuous curve governed by the mid-girth measurement
- Attachment: fully attached at both the luff and the foot without zippers
- First reef: at least three feet above the foot
- Cloth: Dacron 5 oz to 7.25 oz per 28-1/2" running yard
-
- First reef (12%?): ?? square feet. Luff: 27.28 feet, Foot: ?? feet, Leech: ?? feet
- Second reef (24%)? : ?? square feet. Luff: 23.56 feet, Foot: ?? feet, Leech: ?? feet
- Constance Mainsail came with the boat as Tatus II. Donated to Gigi Kingsland early summer 2021.
Headsails
NOTE: check these luff lengths for grommets vs loops and note the differences
| 169LP | Class Limit #1 | Interrupt #1 | Tatus II #2 | 135LP | Class Limit #2 | North Working Jib | Class Limit Working Jib | Hank-on Jib | | |
| Measured | 2022-05-22 | | 2019-06-26 | | | | | |
| Measurer | Lanny Helms | | Mike Lehman | | | | | |
| Luff | 34'-00" | 34' | 34' | 32'-06" | 32'-09" | 32' | 29'-03" | 30' | 30'-04" | | |
| Foot | 18'-09.5" | 19' | 18'-04" | 16'-09" | 15'-01" | 15' | 10'-06" | 10'-03" | 9'-06" | | |
| Leech | 33'-06" | 33'-06" | 33'-06" | 32'-06" | 30'-10" | 30'-03" | 26'-07" | 25'-09" | 27' | | |
| Area | 304.4 | 307.6 | 297.6 | 271.9 | 231.0 | 225.0 | 138.1 | 127.8 | 125.8 | | |
| LP (J:10'-09") | 167% | 168% | 163% | 150% | 131% | 131% | 88% | 80% | 77% | | |
| Tack and Head Attachment | Grommets | n/a | Grommets | Loops | Loops | n/a | ?? | n/a | Grommets | | |
| Fabric | Dimension-Polyant 240B HTP | | | | Challenge Fastnet | | | |
| Weight | 5.6oz | | | | 7.38oz | | | |
- No.1 Genoa based upon Class Rule and Sail Plan:
- Size: 307.6 square feet. Luff: 34 feet, Foot: 19 feet, Leech: 33.5 feet
- Cloth: Dacron 5 oz to 6.5 oz maximum per 28-1/2" running yard
- Luff Perpendicular: 18.09 feet
- Overlap: 168.29%
- 20180531: Mike Nikolich inspected the jib. There is chafe on the UV cover, needs a sewn repair in each location. Dacron tape does not stick to the UV cover (Sunbrella). Identify what is chafing the UV cover so that the chafe can be eliminated. The head of the jib, which is not protected from UV, has some damage. Not severe at this time. Webbing at head and tack may need replacement. Sail has some life in her yet.
- Constance Elliott Pattison Roller Reefing Genoa
- Size: 307.3 square feet. Luff: 33.83 feet, Foot: 19 feet, Leech: 33.5 feet
- Luff Perpendicular: 18.2 feet
- Overlap: 169%
- Camber: 12.5% at head, 14.5% middle, 8% bottom. Max camber 38% aft.
- 2 rows of 3 step zig-zag stitching.
- Stainless steel rings in all three corners with webbing load tapes.
- Quick adjust leech and foot lines, tell tales, and sail bag.
- Sail numbers, draft stripes, and tell tale window.
- Made by Elliott/Pattison Sailmakers
- Ordered 2020-12-30. Delivered 2021-02-26.
- Measured and signed: 2022-05-22 by Lanny Helms #562, witnessed by Bob Leigh.
- See 169LP
- Interrupt Roller Reefing Genoa
- Size: 297.58 square feet. Luff: 33.92 feet, Foot: 18.33 feet, Leech: 33.5 feet
- Luff Perpendicular: 17.5 feet
- Overlap: 162.86%
- Made by Thurston Sails
- Measured and signed: 2019-06-26 by Mike Lehman #505, witnessed by John Maliszewski. Photo below.
- Tatus II Original Roller Reefing Genoa
- Size: 271.87 square feet. Luff: 32.5 feet, Foot: 16.75 feet, Leech: 32.5 feet
- Luff Perpendicular: 16.8 feet
- Overlap: 150.55%
- Constance 135LP Roller Reefing Genoa
- Size: 231.0 square feet. Luff: 32'-9" (9.982m), Leech: 30'-10" (9.398m), Foot: 15'-1" (4.601m), LP: 14'-2" (4.318m), Tack height 1'-0" (0.305m)
- Luff Perpendicular: 14.12 feet
- Overlap: 131.37%
- Cross-cut Challenge Fastnet
7.38oz dacron.
- See 135LP
- No.2 Genoa based Sail Plan:
- Size: 225.0 square feet. Luff: 32 feet, Foot: 15 feet, Leech: 30.25 feet (from sail plan below)
- Cloth: Dacron 5 oz to 6.5 oz maximum per 28-1/2" running yard
- Luff Perpendicular: 14.06 feet
- Overlap: 130.82%
- Roller Working Jib acquired for $250 from Gregory Urban, an SSA Lightning sailor, via Sailboat Swap Shop on Facebook
- Size: 138.1 square feet. Luff: 29.25 feet, Foot: 10.4 feet, Leech: 26.6 feet
- Luff Perpendicular: 9.4 feet
- Overlap: 87.9%
- Working Jib based upon Class Rule and Sail Plan:
- Battens: optional
- Size: 127.8 square feet. Luff: 30 feet, Foot 10.25 feet, Leech: 25.75 feet
- Cloth: Dacron 7.25 oz maximum per 28-1/2" running yard
- Luff Perpendicular: 8.52 feet
- Overlap: 79.84%
- Constance Hank-on Working Jib acquired for the cost of shipping only from John Irving
- Size: 125.8 square feet. Luff: 30.34 feet, Foot: 9.5 feet, Leech: 27.0 feet
- Luff Perpendicular: 8.29 feet
- Overlap: 77.1%
- Gift from John Irving for the cost of shipping. Only $38.00 for a beautiful sail.
Spinnakers
Spinnaker placed on gym floor with clews placed on top of one another. Luff/Leech tapes lightly pulled from head to clews along a line painted on the gym floor. In the table below, inc indicates that the cloth had to be folded back towaards the centerline in order for the cloth to lie flat on the gym floor. The width of the "fold over" section is noted at each half girth.
| | Interrupt | Tatus II | AIRX 600N
| Class Limit |
|---|
| Measured | 2019-06-26 | | 2022-05-22 | |
| Measurer | Mike Lehman | | Lanny Helms | |
| Luff/Leech | 35' | 33'-4" | 35'-05" | 35'-06" |
| Foot | | | 18'-07" | |
| Mid-girth | | | 19'-03" | 19'-04" |
| | Half Girth and | | 1'-8" foot roach |
| Above foot | width of fold over | | |
| 3 feet | 9' | 9'-3" | 9'-5.5" |
| 6 feet | 8'-11" | 9'-2" | 9'-7" |
| 9 feet | 8'-9" | 9'-2" | 9'-6" |
| 12 feet | 9' inc 4" | 9'-2" inc 4" | 9'-5.5" |
| 15 feet | 8'-11" inc 6" | 9'-5" inc 10" | 9'-4" |
| 18 feet | 9'-2" inc 12" | 9'-2" inc 13" | 9'-3.5" |
| 21 feet | 8'-10" inc 13" | 9'-0" inc 22" | 9'-3.5" |
| 24 feet | 8'-5" inc 16" | 7'-11" inc 24" | 8'-6" |
| 27 feet | 7'-4" inc 13" | 5'-1" inc 20" | 6'-10" |
| 30 feet | 5'-3" inc 8" | 3'-7" inc 12" | 4'-5.5" |
| 33 feet | 2'-7" inc 5" | | |
- Class Rule Spinnaker:
- Shape: equal length luffs
- Size: Luff and Leech 35.5 feet, Maximum girth 19.3 feet (half girth 9'-7.5")
- Cloth: 0.75 to 1.2 oz maximum per 28-1/2" running yard
- Elliott Pattison Spinnaker arrived 2019-12-09. Can be seen in the T2PTV video of 2020-06-24 at timestamp 8:25.
- AIRX
600N
cloth
- Measured and signed: 2022-05-22 by Lanny Helms #562, witnessed by Bob Leigh.
- Interrupt Spinnaker obtained 2018-07-30 acquired from Bruce Greer

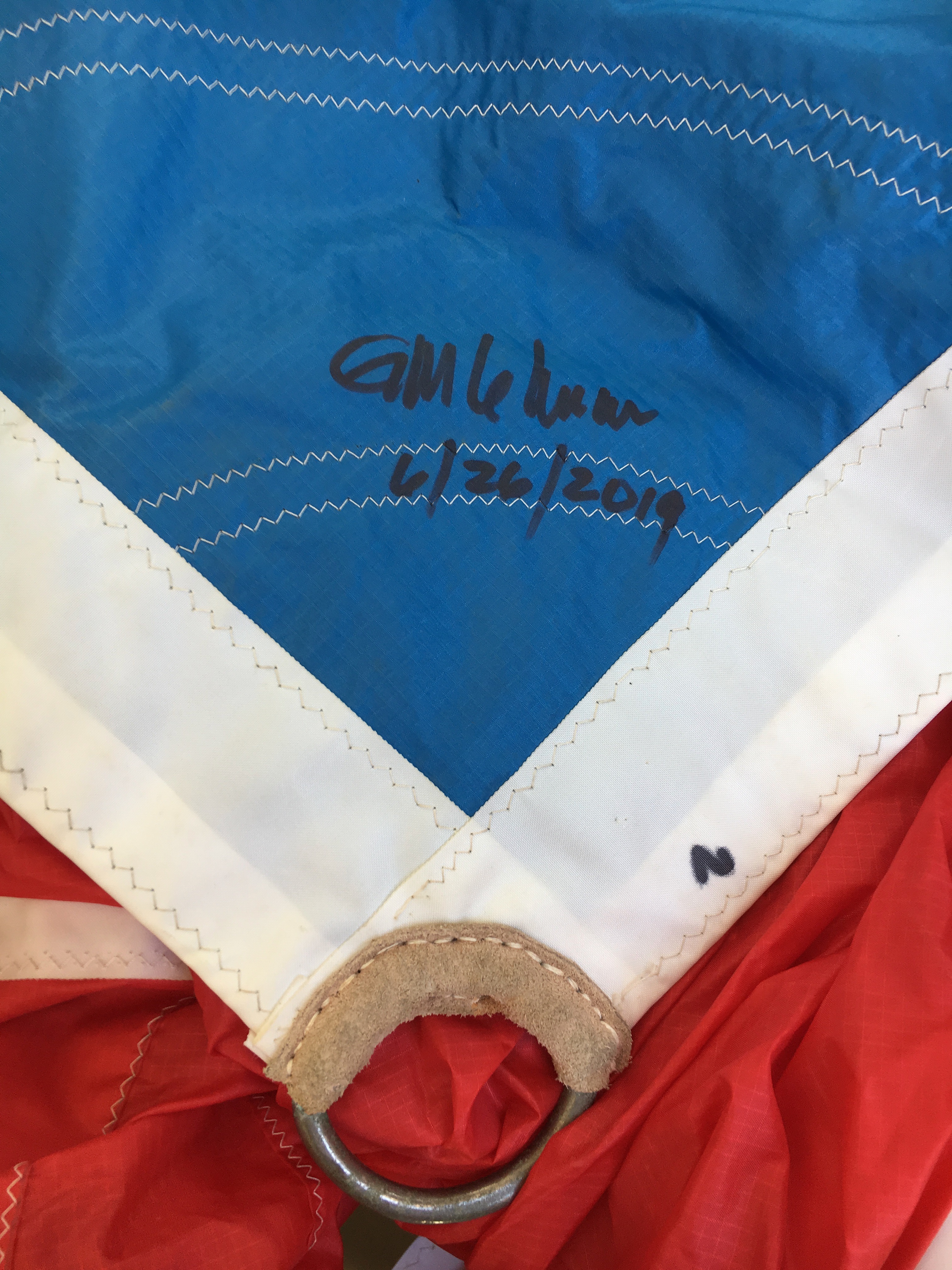

- Measured and signed: 2019-06-26 by Mike Lehman #505, witnessed by John Maliszewski. Photo below.

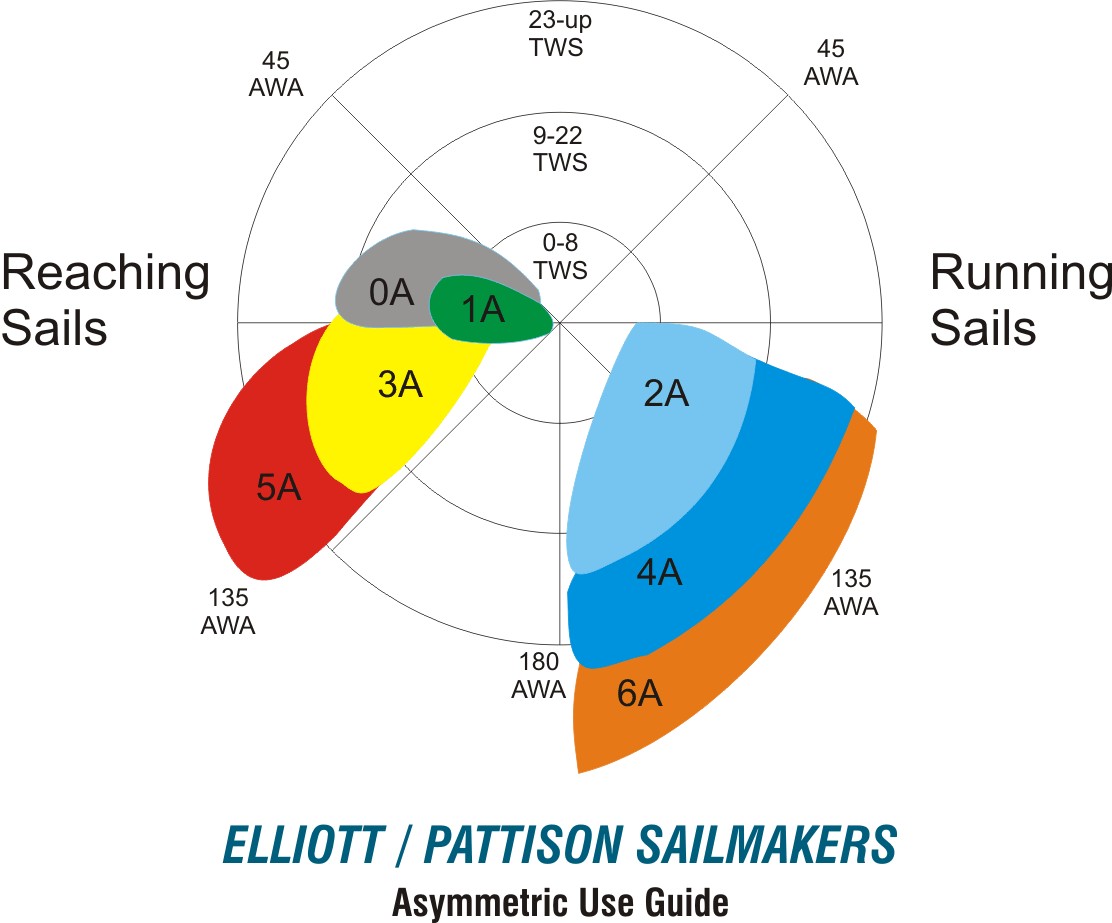

- Asymmetric Spinnaker (Wes Gardner) Luff: 35.5', Leech: 31.0', Foot: 21.75'
Diagrams
Law of Sines: a/sin A = b/sin B = c/sin C
Law of Cosines: c2 = a2 + b2 − 2ab cos(C)
Areas are computed from Heron's formula:
- Sides of a triangle are: a, b, c
- Semi-perimeter: p = (a + b + c) / 2
- Area = [p * (p-a) * (p-b) * (p-c)]^(1/2)
| Selden 200 S | Schaefer Jib Furler |
| Luff Tape | 1/4" or 6mm | #6 (3/16" or 5mm) |
| Head Deduction | | 21-1/2" or 540mm | |
| Tack Deduction | | 13" or 330mm | |
| Cutback (shackle to feeder) | 2-3/8" or 60mm | |
| Shackle to Feeder) | 1100mm | |
| Reference | |
Skip Novak "down south" mainsail design points :
- Full length battens.
- Webbing with rings on both sides of each tack reef cringle so that the tack can be secured on either port or starboard when reefing.
- Webbing handles, large enough to insert the whole hand, sewn into the luff above each tack reef cringle for pulling the sail down to the reef position.
- Very heavy chafe patches on the battens whereever they may touch the rig.
- All seams with four rows of stitching with cover strip over the seam to protect the stitching.
- Blocks sewn to the leech of the sail above each reef cringle with an additional cringle half way down to the next larger reef cringle, so that the reefing line may be lead from the boom, through the cringle, through the reefing block and back to the boom end. As a result, the sail will accordion on the boom, folding at the intermediate leech reef cringle.
- Fourth reef in place of carrying a storm trysail.
- Three roller furling headsails: 140 yankee, 90% jib, and staysail which is cut flat as a true storm jib. No changing head sails in bad weather. Reef early, reef often. Reef when you first consider that it might be necessary. See Skip Novak's Storm Sailing Techniques Part 3: storm sails
Skip Novak "down south" headsail design points :
- Hollow leech sails.
- Conservative cuts.
- High clews.
- Permanently rigged staysail/storm jib.
Daniel Swords on how he sails:
When I purchased my boat it came with a 150% furling genoa. I found that sail was slow and difficult to tack singlehanded and became overpowered, developing significant weather helm, in winds over about 15 mph. The large sail was also difficult for me to furl in high winds and didn't set well when partially furled.
I am currently using a 110% genoa which I like much better. It is much easier and faster for me to tack and to furl the sail even in high winds at the end of the day and I can also see around and under the sail much better when sailing around other boats.
When the wind gets up to about 18+ mph I put the first reef in my mainsail. My boat balances beautifully with only a very slight weather helm in winds of about 18 to 22 mph with the 110% genoa and one reef in the main.
When the wind gets up to about 22 to 25 mph I put the second reef in my mainsail. With the full 110% genoa and two reefs in my mainsail my boat has a totally neutral helm.
With winds above about 25 mph I furl the jib by about 70% to what I consider to be storm jib size. I find on my sail that furling less than this creates a big belly in the luff of the jib but that belly flattens out and disappears at about 70% furled. My boat sails faster and handles better even with this small jib than with just a double reefed mainsail.
In winds above 28 to 30 mph my boat seems to hove-to well on just a double reefed mainsail and no jib, but I do not get a lot of practice sailing in these higher wind conditions.
One caveat, getting the proper lead on the jib sheets with this size jib is a slight problem. The genoa tracks on the toe rail on my boat do not go far enough forward for this smaller sail. I find the sail trims best on the inside jib tracks with the sheets led inside of the cap shroud but outside of the lower shrouds. This also allows me to point higher than I could with the larger genoa. But it means the jib sheet rubs on the inside of the cap shroud on a close reach and the jib sheet knot on the clew tends to catch on the cap shroud when trimming in from a close reach to close hauled in high winds. I am currently working to resolve this problem but haven't yet found a great solution other than to luff the sail while I trim it inside the cap shroud.
Alberg 30 Fully Battened Mainsail, Luff 30.75, Leech 33.49, Foot 14.25
Date: Mon, 9 Jan 2017 14:11:30 -0500
Subject: Alberg 30 Mailsail
To: 262alberg30@gmail.com
To Jonathan Bresler,
Thank you for your enquiry regarding the new Alberg 30 Mainsail we
currently have in stock.
This sail was built to standard class dimensions for an Alberg 30 owner
who, after receiving the new sail discovered that his rig had been changed
previously. Thus he had to return the sail so we could build another to his
custom dimensions.
The sail is built in premium Challenge 7.3oz High Modulus dacron. It has a
standard nylon/carbon composite headboard with 4 full battens and 2 reefs.
The battens are evenly spaced and the reef placement is standard, at 12%
and 24% up the luff. It currently has 7/8" external slides on the luff and
loose foot with outhaul strap. The sail includes Cunningham, Alberg 30
insignia and currently has sail #221 installed.
This sail is available for immediate shipping. Shipping cost is $38 to MD.
There is no sales tax outside of Florida.
Thanks again and we look forward to being of service.
Dirk Sharland
National Sail Supply, LLC (Rolly Tasker Sails, Florida)
26092 Withrow Rd
Brooksville, FL 34601
1-800-611-3823
from outside of US 352-540-9101_ www.nationalsail.com
Would like to know more about this item. Among the questions that come to
mind are:
* condition
* age
* manufacturer
* material (assume Dacron, but dont know)
* weight of fabric
* headboard material and size
* number of battens
* number of reefs
* position of battens relative to reefs
* type and size of slides
* photos
* cost of shipping to Silver Spring MD, just north of Washington DC
Thank you,
Jonathan Bresler
s/v Constance
Alberg 30 #262
